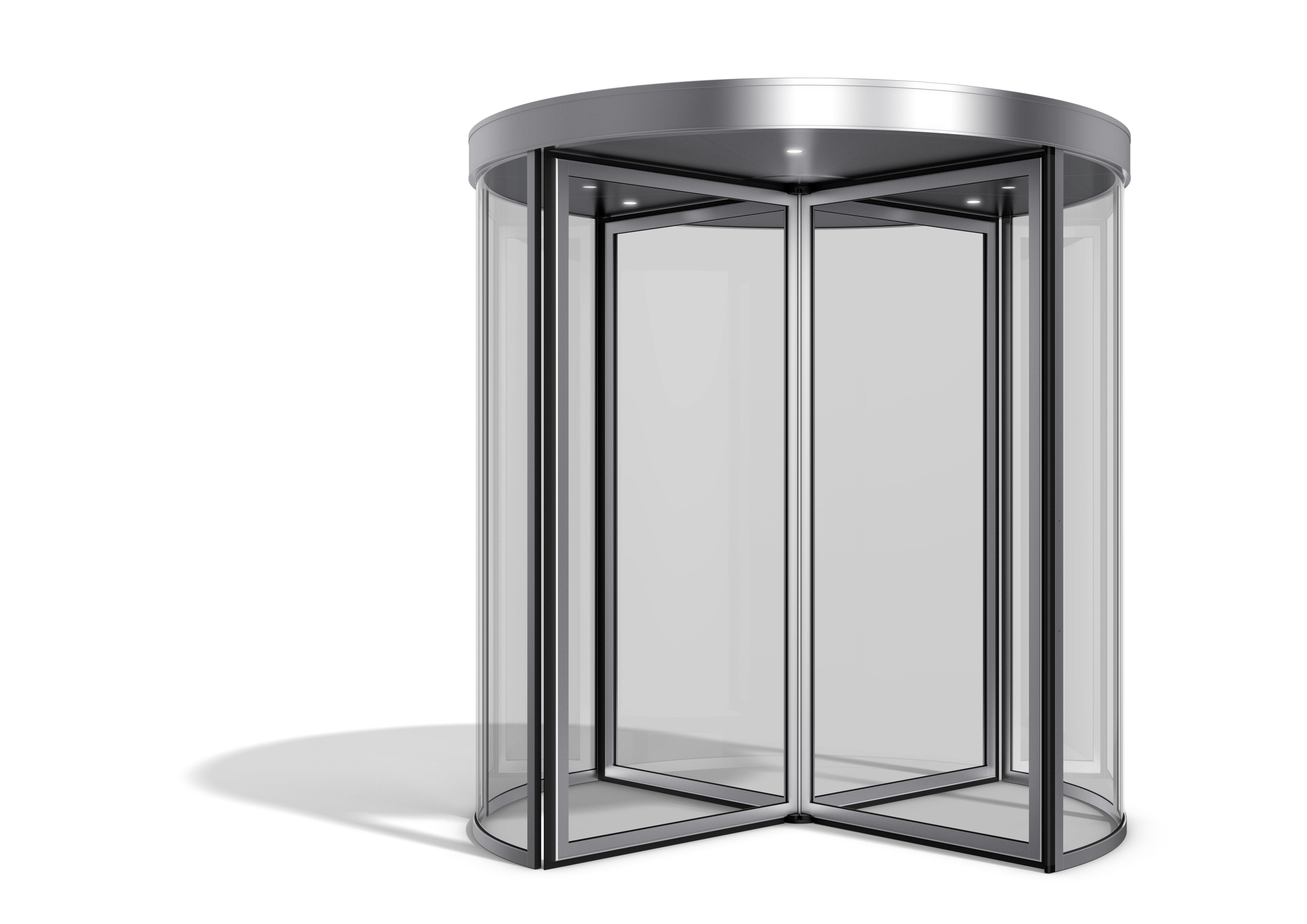

Blending the convenience of a fully automatic revolving door with the flexibility of manual operation
The Record K150 revolving door offers the perfect blend of convenience and flexibility, dynamically adjusting its speed to match pedestrian traffic for optimal efficiency. The K150 is fully automatic but also provides the option for manual operation, giving users additional control when needed.
With three different speed settings, advanced safety features, and a security rating of RC3, the K150 ensures both safety and security without compromising on aesthetics.
Available in both 3-wing and 4-wing configurations, the K150 can be tailored to meet the unique needs of any building.
This revolving door is ideal for a wide range of buildings, including office buildings, banks, retail stores, hotels, luxury boutiques, universities, restaurants, hospitals, and transport hubs.
See our Automatic Entrance Solutions
The Perfect Speed
The K150 automatic revolving door offers seamless adaptability for all your needs by adjusting its speed to match varying pedestrian flow rates and match modern traffic patterns.
With customisable Automatic High Speed, Individual Speed Control, and Low Speed settings, the K150 automatic revolving door offers exceptional versatility enabling users to manually push to increase the door's speed to a preset maximum, allowing them to navigate at their preferred pace.
These adjustable speed settings guarantee a relaxed and effortless passage experience, tailored to the unique needs of your users.
Enhanced Safety and Security
The K150 automatic revolving door is designed with advanced safety and security features to ensure the well-being of all users.
The Individual Speed Control feature prevents hazardous speed rises caused by excessive force or strong winds, while the Low-Speed setting mitigates collision risks when multiple users enter or exit the door together.
The K150 prevents manual operation at speeds exceeding the slowest occupant's pace, adding an extra layer of protection to ensure peace of mind and security for you and your customers.
Additionally, rubberised safety edges on the door leaves further reduce the likelihood of entrapments or finger injuries during rotation. These features, combined with a security rating of RC3 to protect your premises, make the K150 a secure and reliable choice for any entrance.
- Automatically adjusts to pedestrian flow with three speed settings and manual push option
- Fully automatic with manual override for added control
- Speed control to prevent sudden acceleration, low-speed collision prevention, and rubberised safety edges
- RC3-rated for enhanced protection
- Available in 3-wing and 4-wing configurations.
- Suitable for offices, banks, hotels, retail, hospitals, and transport hubs.
- Reduces heat loss and lowers energy costs.
- Synchronises with pedestrian movements for optimal convenience and efficiency
- Combines fully automatic operation with manual push options for swifter, user-friendly access
- Offers three modes – Automatic High Speed,Individual Speed Control, and Low Speed – for tailored passage experiences
- Active door-mounted systems prevent unsafe manual operation Low-Speed mode reduces collision risks in shared use
- Rubberised safety edges minimise entrapment or injury risks
- RC3-rated for enhanced protection against unauthorised access or break-ins
- Available in three- or four-door wing designs with various sizes to suit diverse building requirements
- Simplifies installation and allows for easy configuration adjustments
| Pedestrian – Individuals | • |
| Pedestrian – with luggage | - |
| Pedestrian – Groups (mm) | ≥2700 |
| Pedestrian – Speed Control | • |
| High Traffic including Trolleys & Wheelchairs | - |
| Max. Capacity per minute per direction | 27-54 |
| Diameter (increment of 100mm) | 1800–3000 |
| Internal passage height (mm) | 2200–3000 |
| Canopy height (mm) | 200–1250 |
| Break out capability | - |
| Emergency Escape 3rd Party Certification | - |
| TUV-Certification | • |
| EN16005:2012 | • |
| EN1627:2011 Burglary Resistance Class 2 and Class 3 | • |
| Night-Closing Doors (NCD), internal or external | • |
| Power supply | 100–240 VAC+10/-15%, 50/60 Hz, mains fuse max. 10 A (building installation) |
| Power consumption | 300W including LED spot lights max. 30W |
| Lighting LED 7 W | 42W |
- Essential door equipment Fascia, non-standard height 200 –1250 mm
- Internal height non-standard 2200 –3000 mm
- Automatic drive
- Control unit built-in behind the fascia above the inside entrance
- Outer wall and door sections made from aluminium profiles
- Glass outer wall maximum glass thickness of 18 mm
- Glass rotating part maximum glass thickness of 14 mm
- Ceiling made from aluminium panels
- Dust protection roof made from white laminated panels
- Flush mount emergency stop button
- Independent certification to EN16005:2012
- Powder-coated finish (RAL colours), anodized or stainless steel cladding
- Night Closing Doors (NCD) internal or external
- Burglar resistance class 2 or 3 according to EN1627:2011
- Mechanical espagnolette lock on door wing rotating part with or without locked indication
- Finished floor installation or installation on stainless steel ground ring
- Various finishes for ceiling and dust cover
- Various finishes for Water-resistant cover
- Lighting LED with control
- Insulated fascia
- Electric or water heated Air curtain horizontal integrated in the canopy or external vertical side mounted
